Product Features
1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
3. Light Weight: The cabinet uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive.

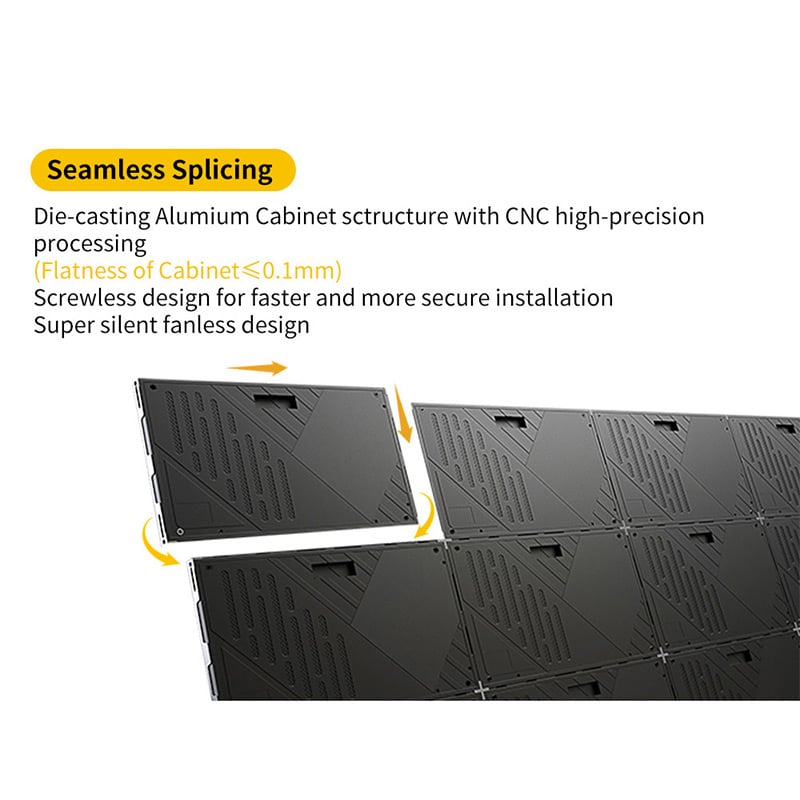

4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble.

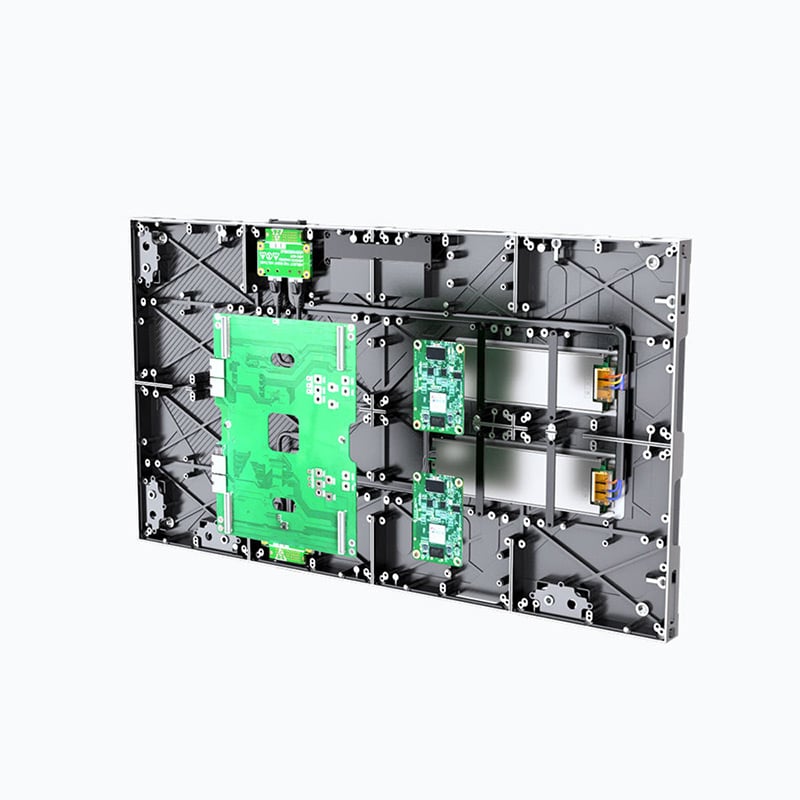

5. Easy Setup: Back modules are made easier for connection.

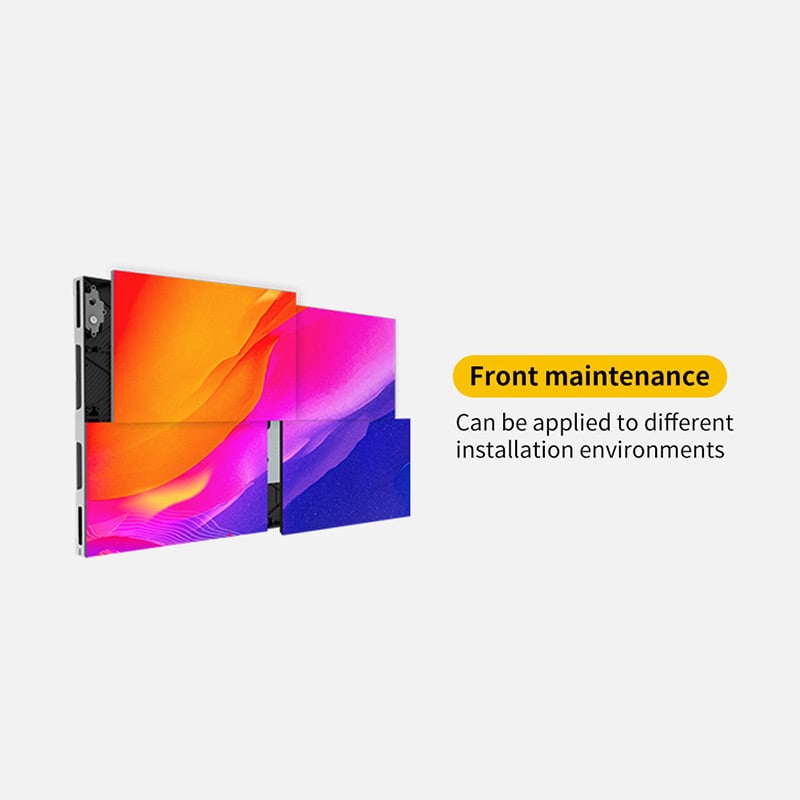

6. Totally front service design. Saving space and maintenance cost.
Product Specifications
| Pixel Pitch | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 | P2.5 |
| LED Type | COB | COB | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515 |
| Physical density(Dot/sqm) | 1638400 | 1137778 | 640000 | 409600 | 284444 | 160000 |
| Module resolution | 192X216 | 160X180 | 240X135 | 192X108 | 160X90 | 60X135 |
| Module size(mm) | 150X168.75 | 150X168.75 | 300X168.75 | 300X168.75 | 300X168.75 | 150X337.5 |

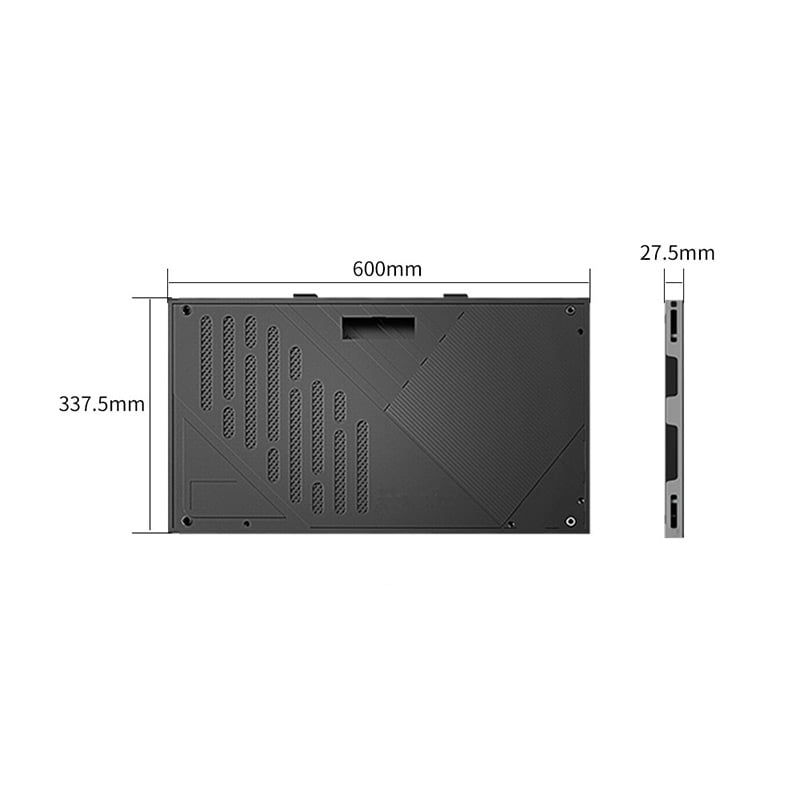

| Panel Dimension (WXHXD/mm) | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 |
| Panel Resolution | 768X432 | 640X360 | 480X270 | 384X216 | 320X180 | 240X135 |
| Module QTY(WXH) | 4X2 | 4X2 | 2X2 | 2X2 | 2X2 | 4X1 |
| Panel weight(kg) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Maintenance Mode | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
| Cabinet Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Brightness Carlibration | Have | Have | Have | Have | Have | Have |
| Brightness(Nits) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Color temperature(K) | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional |
| Viewing angle(V/H) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Brightness/Color uniformity | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
| Contrast ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive mode | 1/64 scan | 1/60 scan | 1/45 scan | 1/48 scan | 1/45 scan | 1/30 scan |
| Grey level | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max. power consumption(W/sqm) | 350 | 350 | 350 | 350 | 350 | 350 |
| Avg. power consumption(W/sqm) | 100 | 100 | 100 | 100 | 100 | 100 |
| Protection level | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Power input | AC90-264V,47-63Hz | |||||
| Wroking temperature/humidity(℃/RH) | -20~60℃/10%~85% | |||||
| Storage temperature/humidity(℃/RH) | -20~60℃/10%~85% | |||||
| Certificatiom | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||
FAQ
Q:Can I have a sample order for led screen?
Yes, we welcome sample order to test and check quality for both led module and led screen.
Q:How long will it take to delivery the goods?
For led module our delivery date is 7-15 days,for led screen order less than 100 square meters we can delviery within 20 working days.
Q:What kind of warranty do you offer?
We offer 2 years warranty for our products.
Q:How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q:How can we guarantee quality?
Always a pre-production sample before mass production and final Inspection before shipment.
Q:How much is the freight?
The shipping cost is determined by the size of the screen.
Q:Can l customize it?
Of course. All the goods can be customized, we have a professional product development team, welcome tocustomize.
